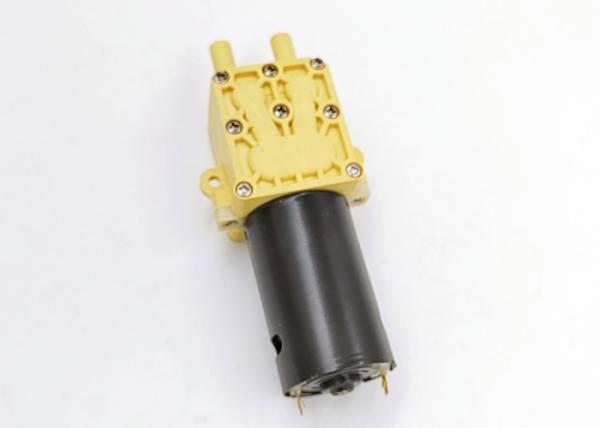

Small Size Rated Flow 1.4 L/M Pressure Diaphragm Pump Electric DC Motor
Small Size Brush DC Electric Mini Diaphragm Air Pump Powerful Pressure
Working principle: the rotary motion of the motor turn into the swing of connecting rod which makes the diaphragm up and down motion. In the process of the downward movement of the diaphragm, pump cavity will suck medium through the inlet valve; Upward movement of the diaphragm, pump cavity press out media through the outlet valve. Mechanical transmission parts and pump cavity is isolated by diaphragm. Diaphragm pump does not need oil for auxiliary lubricating, in the process of transmission, extraction and compression of medium.
|
Model Number
|
SS524-15A-2500
|
|
Name
|
DC 12V Micro diaphragm water Pump
|
|
Connection size
|
8.5MM
|
|
Voltage
|
DC12V or 24V
|
|
Self-priming head
|
>1m
|
|
Pressure
|
5-6bar
|
|
Lift head
|
5-6m
|
|
Flow (MAX)
|
1.1L/min
|
powerful electric air pump's application
Developing World Water Solutions, Drinking water treatment, Family Homes, Food and Beverage Industry, Industrial Utilities, Irrigation and Agriculture, Marine, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, Water Distribution, Water Treatment Solutions, Water Treatment Solutions
FAQ
Is the pump loud? Will idling burn if don't connect with water ?
The pump has a certain noise during working hours, about 60 decibels. The inlet pipe is made of flexible hose, and the pump is fixedly installed to reduce noise. No water idling for a long time will not damage the pump.But it is not a good idea let this pump runs dry for too long.
Is there water in the Pressure Diaphragm Pump that has been used?
Each pump is tested at the factory, so there will be clean water in the water, so please put a red waterproof cap in time to prevent the pump from being too dry and not absorbing water for a long time.
What motor is used in the Pressure Diaphragm Pump?
Full copper wire double-rolled DC motor (power line does not divide positive and negative) continuous service life of more than 1000 hours.
